Arcam unveils rPhono and rPlay

Following on from our review of Arcam's classy rHead headphone amplifer (HFC 420), the company has added to the rSeries with the rPlay and rPhono.

The rPlay adds network audio streaming services and internet radio to any system that it's partnered with. Using DTS PlayFi, Apple Airplay and UPnP-enabled music sources, it's compatible with Spotify, Tidal, Qobuz, Deezer and Pandora, along with many more, thanks to regular updates.

DTS Play-Fi supports hi-reso audio (24/192) from a wired network and enables lossless multi-room wireless audio streaming from the most popular music services and internet radio stations.
Arcam tells us that the rPlay uses the finest quality parts, in a layout optimised for low noise and minimum distortion. The four-layer PCB design maximises the quality of the ground plane in order to further reduce interference between components. As well as a fixed line level analogue output, the rPlay also features a variable analogue output which uses the same expensive volume control as the A49 flagship amplifier.

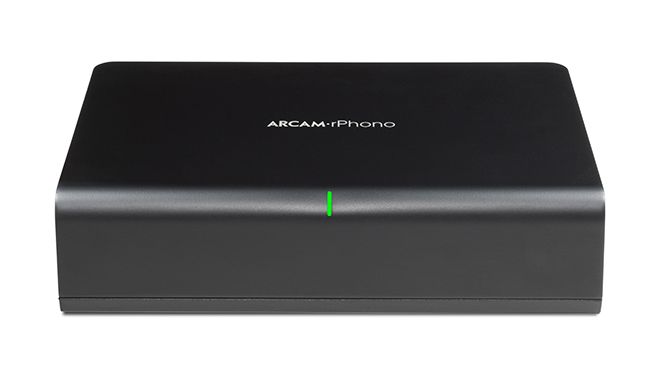

Designed specifically to upgrade any built-in phono stage or to add a turntable input to an existing amplifier, the rPhono is the latest addition to Arcam’s extensive Black Box rSeries. Moving-coil users will benefit from precision impedance matching using high-quality trimmers instead of discrete steps, while moving-magnet users have a wide variety of capacitance options to choose from. An optionally selectable low frequency “rumble” filter is claimed to eliminate the effects of warping or pressing irregularities, which can be present on some vinyl.

Both products will be publically launched at  the Bristol Show and are expected to cost £399 each. You can find out more about the rPlay here and the rPhono here.

Arcam rPlay Specs


TI PCM5102

Frequency response

10Hz — 20kHz

Total Harmonic Distortion + Noise


Signal-to-noise ratio (A –Weighted)


Maximum output level


Power requirements (max)

12V DC, 2.0A

Dimensions (WxHxD)

194 x 44 x 124mm

Net weight


EAN/UPC code

5 060133 602613

rPhono Specs

Frequency response Rumble filter OFF  - 20Hz-50kHz ± 0.2dB -3dB at 7Hz

Rumble filter ON - 45Hz-50kHz ± 0.2dB -3dB at 20Hz, -13dB at 10Hz

Total Harmonic Distortion + Noise (at 1kHz, 5V Out)

MC input, 30dB gain 0.005%

MM input, 30dB gain 0.0015%

System gain

MC input 60, 70, 80 or 82dB

MM input 30, 40, 50 or 52dB

Input impedance

MC input 50 - 550Ω + 1nF

MM input 47kΩ + 120, 220, 340 or 440pF

Equivalent input noise (A-weighted, 40dB MM gain)

MC input 0.06μV RMS

MM input 0.5μV RMS

Output level

Nominal 0.5V RMS

Maximum 6V RMS

Dimensions (WxHxD) 194 x 44 x 124mm

Net weight 1.1kg
